Why Large 3D Printed Parts Warp and What Actually Helps

A large 3D printed part can look perfect for most of a print, then slowly betray you at the corners.

Maybe the edges start lifting off the build plate. Maybe a flat cover comes off the printer with a gentle curve that makes it rock on the table. Sometimes the part looks fine at first, only to crack near a corner a few days later. That is frustrating, especially when the print took many hours and used a lot of material.

The good news is that warping is rarely random. Plastic moves as it cools. Once you understand where that movement creates stress, you can make smarter choices about print settings, material, part orientation, and design.

Some problems call for a careful reprint. Others are the part’s way of saying the design needs another pass.

The real reason printed plastic warps

Most common 3D printing filaments are thermoplastics. They are heated until soft enough to flow through a nozzle, then deposited layer by layer. As the plastic cools, it contracts.

That contraction is normal. The trouble starts when one area cools and shrinks more quickly than another.

The bottom layers of a print sit against a relatively warm build plate, while upper layers are exposed to cooler air. Outer edges lose heat faster than thicker interior areas. A draft from an open window, air conditioning vent, or cooling fan can make one side cool differently from the other.

The plastic wants to shrink, but adjacent layers and areas of the part resist that movement. Internal stress builds. If the stress becomes stronger than the part’s grip on the build surface, corners lift. If the stress exceeds the bond between layers, the print can split. If the whole surface bends under uneven contraction, you get bowing.

Large parts make this more obvious because there is simply more material moving at once. A small 30 mm square may print flat with little effort. A 300 mm plate made from the same material is a different challenge.

Sharp corners make matters worse. They act like stress collection points. A rounded corner has some room to flex as the plastic contracts. A sharp 90-degree corner tends to pull hard against the build plate, which is why corner lift often begins at the outermost points of a rectangular print.

What warping looks like in real life

“Warping” gets used for several different defects. It helps to name the actual issue before deciding how to fix it.

Curled corners and corner lift

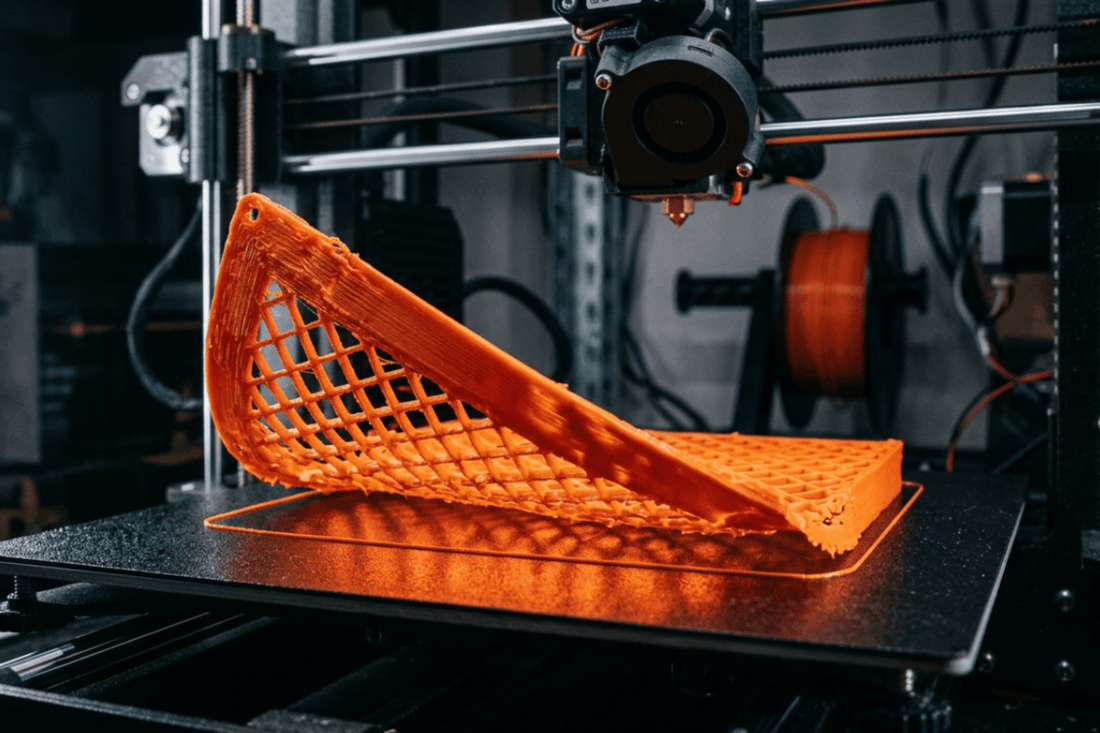

Corner lift is the classic failure. The center of the part remains attached to the bed, but one or more corners rise upward.

This often happens with broad rectangular parts such as trays, flat brackets, equipment covers, bases, and mounting plates. A curled corner may seem minor until the part needs to sit flush against another surface. Then even a few millimeters of lift can prevent holes from lining up or leave an unwanted gap.

Poor first-layer adhesion can contribute, but it is not always the real cause. A perfectly clean build plate cannot fully solve a part that is generating too much shrinkage stress.

Bowing across a broad surface

Bowing is less dramatic than a lifted corner, but it can be more damaging to the part’s function.

A bowed print may stay attached throughout the job and still come off the bed with a curved base. Sometimes it bows upward in the middle. Other times, the center sinks while the edges sit high. The part may look acceptable in a photo but wobble when placed on a known-flat table.

This matters for sealing surfaces, enclosures, brackets, mounting faces, and anything that must align accurately with another component. If the same broad base bows every time, repeating the print with the same shape and settings is usually a waste of filament.

Layer separation and cracks

Layer separation, also called delamination, occurs when layers do not bond strongly enough to resist the forces pulling them apart. A print may split horizontally during production, while being handled, or after installation.

Cracking can also appear later. A part comes off the printer looking fine, then develops a split after sitting in a hot car or being used outdoors through several temperature swings. That delay can feel mysterious, but the part may have retained residual stress from the print. Heat gives the plastic enough energy to relax or shift, and the weakest area can crack.

A crack near a corner, screw hole, or abrupt change in thickness deserves attention. It may point to a stress concentration in the design rather than a one-time print mishap.

Why large flat parts are so difficult

Flatness sounds simple. In 3D printing, it is one of the hardest requirements to meet reliably.

A large flat surface has a lot of area, a lot of perimeter, and little freedom to move. As it cools, different zones pull against each other. The center may remain warm while the edges contract. Thick sections can retain heat long after thin sections have cooled. Even small temperature differences can create visible distortion over a large footprint.

The same issue applies to a large sheet of material left in the sun. One side heats and expands differently than the other, so it bends. A printed part goes through its version of that process while it is being made.

If a surface must be truly flat, identify that requirement at the beginning. It affects material choice, print orientation, reinforcement, tolerances, and inspection. It is far easier to design around a critical plane than to discover after printing that the part cannot mount correctly.

Materials shrink differently

Material selection is not just about color, strength, or price. It changes how much control the printing process needs.

PLA is popular because it generally prints with relatively low warping compared with many engineering filaments. It is a reasonable choice for many indoor items, prototypes, and low-heat applications. Its limitation is heat resistance. PLA can begin to soften around 55°C, which is well within the temperatures possible inside a closed vehicle in direct sun.

PETG is often a practical middle ground. It usually handles heat better than PLA, around 75°C depending on the specific formulation, and it remains approachable for many printers. It is useful when a part needs more durability or modest heat resistance without the process demands of higher-shrinkage materials.

ABS and ASA need more deliberate temperature control. Both have a stronger tendency to shrink as they cool, which makes them more likely to lift, bow, or split if printed in open air. ASA is particularly useful for outdoor parts because it handles ultraviolet exposure better than many common filaments. Still, its outdoor durability does not make it easy to print. An enclosure and stable temperature are often the difference between a usable ASA part and a warped one.

Polycarbonate can tolerate considerably higher temperatures, often around 110°C, and can be a strong choice for impact-prone or hot applications. It also has demanding print requirements. Carbon-fiber-reinforced nylon can provide high strength and heat resistance, sometimes around 120°C depending on the material, but nylon is moisture-sensitive and needs careful drying and process control.

Flexible TPU 95A belongs in a different category. It works well for grips, gaskets, bumpers, and flexible components. It is not the obvious answer for a rigid, flat structural plate that needs to remain planar.

The best material is the one that can survive both the printing process and the finished part’s actual environment. Those are separate questions, and people sometimes answer only the first one.

Control the temperature around the print

For large parts, the print environment matters almost as much as nozzle temperature.

An enclosure reduces drafts and slows heat loss. That gives the part a more even cooling rate, which lowers the internal stress trying to pull it out of shape. A heated chamber provides even more control for materials such as ABS, ASA, polycarbonate, and some nylons.

You do not need to turn cooling off for every print. The goal is managed cooling, not maximum heat or maximum airflow. Too much fan cooling can create sudden temperature changes, especially on outer walls and corners. Too little cooling can lead to soft details and poor overhangs. The right balance depends on the material and geometry.

A reliable first layer remains essential. Before blaming the design, check the fundamentals:

1. Clean the build surface and remove oil, dust, or residue.
2. Confirm bed leveling and first-layer calibration.
3. Use the bed temperature recommended for the material.
4. Keep the printer away from uncontrolled airflow.
5. Use a brim, mouse ears, raft, or another adhesion aid when the geometry needs extra support.
6. Let high-shrinkage parts cool gradually before removing them from the build plate.

Mouse ears can be especially useful on rectangular parts. These are small round tabs added at vulnerable corners to increase the contact area with the build surface. They are simple, and they can prevent a long print from failing in its last few layers.

Still, adhesion aids should support a sound design, not hide a recurring design problem.

Design stress out of the part

A small design change can do more than endless temperature adjustments.

Rounded outer corners are one of the easiest improvements. If a square corner has no functional purpose, adding a fillet reduces the concentrated pull that causes lifting and cracking. Even a modest radius can help.

Large uninterrupted flat panels are another common source of trouble. Consider whether the part can include shallow ribs, gentle curvature, recessed areas, or reinforcing structure underneath. These features increase stiffness and can break up a wide, featureless plane that wants to bow.

Wall thickness deserves a close look too. Thicker is not always better. A very thick section cools slowly, while nearby thin sections cool more quickly. That difference can create stress. A well-designed ribbed structure may be flatter, lighter, and more reliable than a solid thick slab.

Sometimes the sensible choice is to split the part into smaller pieces. This can sound like a compromise, but it often creates a better result. Two stable sections joined with alignment pins, screws, dovetails, or another fastening method may be more accurate than one oversized print that repeatedly warps.

Print orientation also changes the outcome. It determines which surface lies against the build plate, how shrinkage spreads through the part, and where the layer lines fall. A critical flat mounting face may need to print in a different position than a surface chosen only for visual appearance. Orientation must also account for the direction of force during use. A part that is strong in one direction can split more easily across layer lines in another.

Heat, humidity, and where the part will live

A part’s job does not end when it leaves the printer.

Outdoor use means sun, ultraviolet exposure, rain, humidity, and repeated warming and cooling. A part used in a vehicle may face intense interior heat. Parts near equipment, motors, electronics, or engine-adjacent areas may experience temperatures that an indoor prototype never encountered.

Humidity matters before and during printing as well. Nylon absorbs moisture readily, and PETG can also benefit from proper drying. Wet filament may hiss or pop during extrusion, but the effects are not always so obvious. Moisture can weaken layer bonding and reduce the mechanical reliability of the finished part.

Ask practical questions before choosing a filament: Will the part be in direct sunlight? Will it stay inside a parked car? Does it need to resist vibration or impact? Must it remain flat against a mounting surface? Is it a decorative item, or does it hold weight?

The answers can change the material and the geometry.

Reprint or redesign?

A reprint makes sense when the design is appropriate and the failure appears tied to a controllable production issue. Perhaps the bed was not clean, the first layer was poorly calibrated, a draft hit the print, or cooling was too aggressive. In that case, adjusting the process can solve the problem.

A redesign is the better call when the same corner lifts repeatedly, a wide base continues to bow, or the part cannot meet its flatness requirement without fighting the material. Repeating the same job under nearly identical conditions may produce a slightly different result, but it does not remove the stress built into the shape.

Before trying again, inspect the part on a known-flat surface. Photograph the full print, the distorted area, and any face that must align with another component. Note whether the issue appeared immediately after printing or after heat, sunlight, transport, or installation.

Then review the part as a system: material, geometry, orientation, print settings, and real-world conditions.

Warping is not a sign that someone did something foolish. It is plastic behaving like plastic. Once you treat shrinkage as a design constraint instead of an annoying surprise, large 3D printed parts become much more predictable.
